Calibration Certificate: is available at extra cost
Thermo-Hygrometer (505,39 KB)
Photo Gallery - click any photo to enlarge
Features:
Dual Display Temperature & Humidity
Display: Large 4-1/2 dual digital LCD display with backlight
Sensor Type: A single chip relative humidity and temperature multi sensor module comprising a calibrated digital output.
High accuracy and fast sampling rate
Dew Point Temperature
Wet Bulb Temperature
Max Hold and Data Hold Function
Auto Power Off, Disable Sleep Mode
Mini Size
Specifications:
Humidity range: 0%~100%RH
Temperature range: –30âÂÂ~ 100âÂÂ, -22âÂÂ~ 199âÂÂ
Resolution : 0.01% RH, 0.01âÂÂ/âÂÂ.
Humidity Accuracy*: + 2%RH (at 25âÂÂ, 20%ï½Â80% RH) or + 2.5%RH (at other ranges)
*Note: The measuring range is from 0% to 100%, but above 80% and below 20% the deviation is not specified.
Air Temperature Accuracy: + 0.5âÂÂ/+ 0.9âÂÂ(at 25âÂÂ) or + 0.8âÂÂ/+ 1.5âÂÂ(all other ranges)
Response Time: %RH: 10S (90% at +25â still air)
Dew Point Temperature: -30âÂÂ~100âÂÂ/-22°F~199°F
Wet Bulb Temperature: 0âÂÂ~80âÂÂ/32°F~176°F
Power: One standard 9V, NEDA1604 or 6F22 battery.
Dimensions/Wt.: 225 (H) x 45 (W) x 34 (D) mm
Weight: 200g
Need to have this new MTP 1368 Highly accurate Thermo-Hygrometer calibrated? While this gauge has passed a quality control check, having a calibration certificate for hygrometers might be required by your quality control system. Digital Measurement Metrology (owner of ProcessInstruments.ca) is a canadian metrology company with more than 25 years of experience. Our Brampton, Ontario based calibration lab has one of the most comprehensive ISO 17025 accredited calibration scope in Canada.
Do you have an old MTP gauge to be calibrated? We might be able to calibrate MTP hygrometers (MTP 1368 or a different model) and provide an ISO, NIST traceable calibration certificate. Please contact our metrology lab for more info.

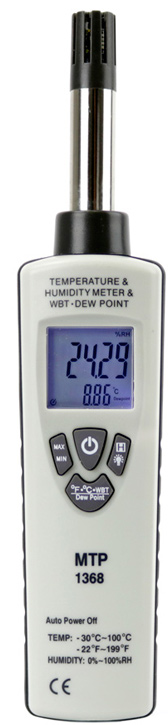

MTP Highly accurate Thermo-Hygrometer
